Buy now 042H2104 - Danfoss

042H2104 || Danfoss || SKU: 119.305

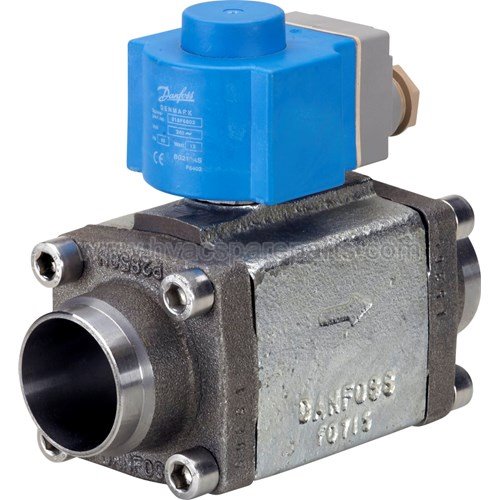

042H2104 Danfoss AKVA 20-4 AKVA 20 042H2104

AKVA 20 042H2104| Tolerance of coil voltage: +10 / –15%. Enclosure to IEC 529: Max. IP 67. Working principle: PWM ( Pulse-width modulation). Recommend period of time: 6 seconds. Capacity (R717): 500- 3150 kW. Regulation range: 10 - 100%. Connection

Save $1,090.85 was $3,317.07

$2,226.22 USD

1 U
$2,226.22 USD

2 U
$2,043.25 USD

More than 2 U
$1,982.25 USD

Delivery time: ...

Specifications

EAN

5702422120889

Approval

EAC, LLC CDC TYSK

Weight

4.51 Kg

Body mat.

STEEL

Rated cap. conditions

Rated cap. R717

2.000,0 kW

Ambient temp. range

-40 - 120 °F

Cv value

4,624 gpm US

Function

N C

Kv value

4,000 m3/h

Man. operation option

Medium temp.

-40 - 60 °C|-40 - 140 °F

Min. ODP

0,000 bar

Compatible Danfoss controllers

EKC 315A|EK347

Direction

Straightway

Flow dir. indicator

Embossed 1-way arrow

Inlet type

Weld Connection

Inlet size

1 1/2 in

MWP

42,0 bar|610 Psig

Outlet type

Weld Connection

Pack format

Singlpack

Parts program name

AKVA

Product accessories

AKV / AKVA accessories
