Buy now 120U8641 - Danfoss

120U8641 || Danfoss || SKU: 113.764

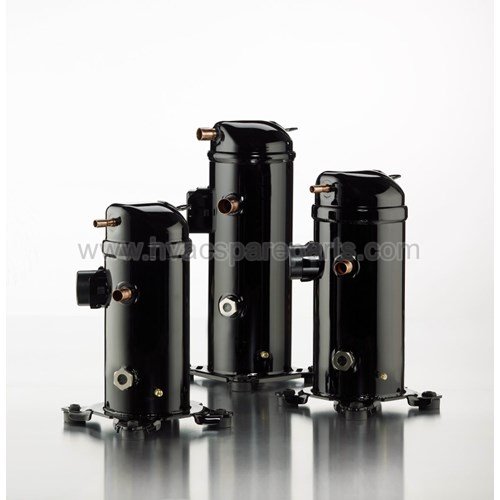

120U8641 Model MLZ030T4A Danfoss Hermetic Compressors

MLZ030T4A

For model: MLZ030T4LC9A

Specifications

Discharge sleeve Description

Solder sleeve, P06 (1" rotolock, 1/2" ODF)

EAN

5702428506274

Colour

Blue

Diameter [mm]

184

LRA

60 A

Low value of nominal voltage at 50Hz [V]

380

Low value of nominal voltage at 60Hz [V]

460

Low value of voltage range at 60Hz [V]

414

Nominal Cooling capacity at 50Hz

7.1

Nominal Cooling capacity at 60Hz

8.9

Number of starts per hour [Max]

Oil charge [L or Kg]

1.57

Oil reference

215PZ

Packing format

Singlpack

Packing quantity

Phase

Shipped oil

Initial oil charge

Suction connection height [mm]

280

Suction connection pipe size [in]

7/8

Suction connection size [in]

7/8

Displacement (cm³)

68.79

Voltage/Frequency

380V/3/60Hz

Oil equalization

None

Type designation

Compressor

Discharge gasket Description

Gasket, 1"

Discharge temperature protection Description

Dischargthermostat kit

Discharge valve

Rotolock valve, V06 (1" rotolock, 1/2" ODF)

Oil Description

POlubricant, 215PZ, 1-litrcan

Suction valve

Rotolock valve, V05 (1-1/4" rotolock, 7/8" ODF)

Net weight

36.08
