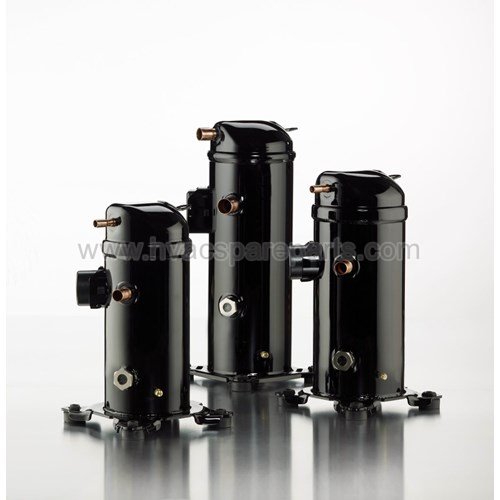

* Generic images, may not exactly match the product shown

Buy now 120U8654 - Danfoss

  • 120U8654 || Danfoss || SKU: 113.776

120U8654 Model MLZ076T4A Danfoss Hermetic Compressors

MLZ076T4A

For model: MLZ076T4LC9A

Specifications

Discharge sleeve Description
Solder sleeve, P06 (1" rotolock, 1/2" ODF)
EAN
5702428506038
Colour
Blue
Diameter [mm]
185
LRA
140 A
Low value of nominal voltage at 50Hz [V]
380
Low value of nominal voltage at 60Hz [V]
460
Low value of voltage range at 60Hz [V]
414
Nominal Cooling capacity at 50Hz
17.3
Nominal Cooling capacity at 60Hz
21.7
Number of starts per hour [Max]
12
Oil charge [L or Kg]
2.66
Oil reference
215PZ
Packing format
Singlpack
Packing quantity
1
Phase
3
Shipped oil
Initial oil charge
Suction connection height [mm]
369
Suction connection pipe size [in]
7/8
Suction connection size [in]
7/8
Displacement (cm³)
162.43
Voltage/Frequency
380V/3/60Hz
Oil equalization
None
Type designation
Compressor
Discharge gasket Description
Gasket, 1"
Discharge temperature protection Description
Dischargthermostat kit
Discharge valve
Rotolock valve, V06 (1" rotolock, 1/2" ODF)
Oil Description
POlubricant, 215PZ, 1-litrcan
Suction sleeve Description
Solder sleeve, P02 (1-3/4" rotolock, 1-1/8" ODF)
Suction valve
Rotolock valve, V05 (1-1/4" rotolock, 7/8" ODF)
Net weight
44.86
