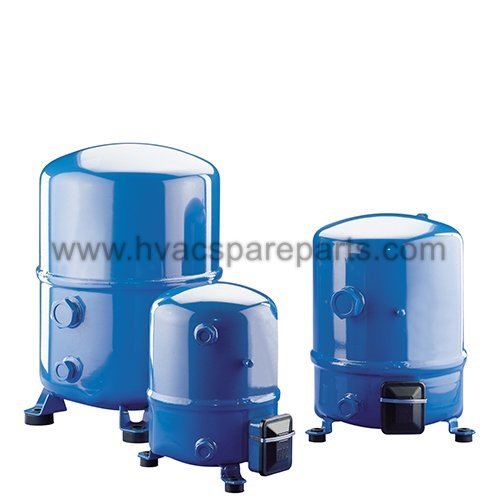

* Generic images, may not exactly match the product shown

Buy now MT50-9VI - Danfoss

  • MT50-9VI || Danfoss || SKU: 115.522

MT50-9VI Model MT050-9 Danfoss Hermetic Compressors

MT050-9

For model: MT50HK9AVE

Specifications

Discharge sleeve Description
Solder sleeve, P04 (1-1/4" rotolock, 3/4" ODF)
Colour
Blue
Compressor power supply [V/Ph/Hz]
380/3/60
Cylinder
2
Diameter [mm]
288
LRA
78 A
Low value of nominal voltage at 50Hz [V]
0
Low value of nominal voltage at 60Hz [V]
380
Low value of voltage range at 60Hz [V]
342
Nominal Cooling capacity 60 kBTU/h
50.51
Nominal Cooling capacity at 50Hz
11.1
Nominal Cooling capacity at 60Hz
14.8
Number of starts per hour [Max]
12
Oil charge [L or Kg]
1.8
Oil equalization torque [Nm]
30
Oil reference
160P
Packaging height [mm]
455
Packaging length [mm]
395
Packaging weight [Kg]
39
Packaging width [mm]
365
Packing format
Singlpack
Packing quantity
1
Phase
3
Shipped oil
Initial oil charge
Suction connection height [mm]
265
Suction connection mounting torque [Nm]
110
Suction connection pipe size [in]
7/8
Suction connection rotolock size [in]
1 3/4
Suction connection size [in]
1 3/4
Suction connection sleeve pipe size [in]
7/8
Displacement (cm³)
85.64
Voltage/Frequency
380V/3/60Hz
Oil equalization
3/8'' flarSAE
Type designation
Compressor
Discharge gasket Description
Gasket, 1-1/4"
Discharge valve
Rotolock valve, V04 (1-1/4" rotolock, 3/4" ODF)
Oil Description
Mineral oil, 160P, 2-litrcan
Suction sleeve Description
Solder sleeve, P07 (1-3/4" rotolock, 7/8" ODF)
Suction valve
Rotolock valve, V07 (1-3/4" rotolock, 7/8" ODF)
Net weight
37.00
