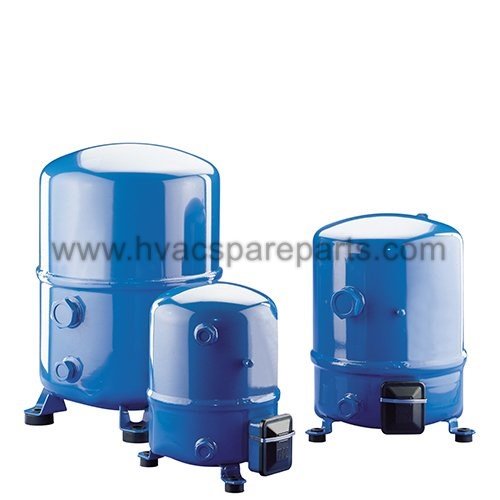

* Generic images, may not exactly match the product shown

Buy now MTZ36-9VM - Danfoss

  • MTZ36-9VM || Danfoss || SKU: 124.009

MTZ36-9VM Model MTZ036-9 Danfoss Hermetic Compressors

MTZ036-9

For model: MTZ36JG9AVE

Specifications

Discharge sleeve Description
Solder sleeve, P06 (1" rotolock, 1/2" ODF)
Colour
Blue
Compressor power supply [V/Ph/Hz]
380/3/60
Cylinder
1
Diameter [mm]
224
LRA
35 A
Low value of nominal voltage at 50Hz [V]
0
Low value of nominal voltage at 60Hz [V]
380
Low value of voltage range at 60Hz [V]
342
Nominal Cooling capacity at 50Hz
4.7
Nominal Cooling capacity at 60Hz
5.9
Number of starts per hour [Max]
12
Oil charge [L or Kg]
0.95
Oil equalization torque [Nm]
30
Oil reference
175PZ
Packaging height [mm]
500
Packaging length [mm]
1150
Packaging weight [Kg]
337
Packaging width [mm]
800
Packing format
Industrial pack
Packing quantity
12
Phase
3
Shipped oil
Initial oil charge
Suction connection height [mm]
263
Suction connection mounting torque [Nm]
90
Suction connection pipe size [in]
5/8
Suction connection rotolock size [in]
1 1/4
Suction connection size [in]
1 1/4
Suction connection sleeve pipe size [in]
5/8
Displacement (cm³)
60.47
Voltage/Frequency
380V/3/60Hz
Oil equalization
3/8'' flarSAE
Type designation
Compressor
Discharge gasket Description
Gasket, 1"
Discharge valve
Rotolock valve, V06 (1" rotolock, 1/2" ODF)
Oil Description
POlubricant, 160PZ, 1-litrcan
Suction sleeve Description
Solder sleeve, P09 (1-1/4" rotolock, 5/8" ODF)
Suction valve
Rotolock valve, V09 (1-1/4" rotolock, 5/8" ODF)
Net weight
26.00
