Buy now 120F0169 - Danfoss

120F0169 || Danfoss || SKU: 113.362

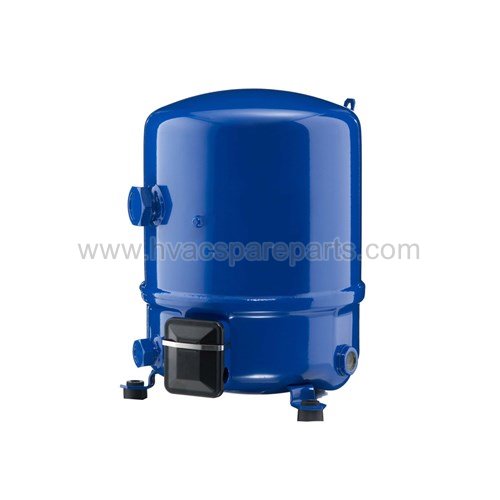

120F0169 Model NTZ068-9 Danfoss Hermetic Compressors

NTZ068-9

For model: NTZ068A9LR1A

Save $3,853.04 was $11,716.39

$7,863.35 USD

Delivery time: ...

Specifications

Discharge sleeve Description

Solder sleeve, P06 (1" rotolock, 1/2" ODF)

Colour

Blue

Compressor power supply [V/Ph/Hz]

380/3/60

Cylinder

Diameter [mm]

224

LRA

29 A

Low value of nominal voltage at 50Hz [V]

Low value of nominal voltage at 60Hz [V]

380

Low value of voltage range at 60Hz [V]

342

Nominal Cooling capacity at 60Hz

2.4

Number of starts per hour [Max]

Oil charge [L or Kg]

0.95

Oil equalization torque [Nm]

Oil reference

160Z

Packaging height [mm]

370

Packaging length [mm]

385

Packaging width [mm]

285

Packing format

Singlpack

Packing quantity

Phase

Shipped oil

Initial oil charge

Suction connection height [mm]

263

Suction connection mounting torque [Nm]

Suction connection pipe size [in]

5/8

Suction connection rotolock size [in]

1 1/4

Suction connection size [in]

1 1/4

Suction connection sleeve pipe size [in]

5/8

Displacement (cm³)

Voltage/Frequency

380V/3/60Hz

Oil equalization

3/8'' flarSAE

Type designation

Compressor

Discharge gasket Description

Gasket, 1"

Discharge valve

Rotolock valve, V06 (1" rotolock, 1/2" ODF)

Oil Description

POlubricant, 160PZ, 1-litrcan

Suction sleeve Description

Solder sleeve, P09 (1-1/4" rotolock, 5/8" ODF)

Suction valve

Rotolock valve, V09 (1-1/4" rotolock, 5/8" ODF)

Net weight

23.00
